Broiler floor management

Name: Broiler floor management
Rating: 4.5 (100 reviews)

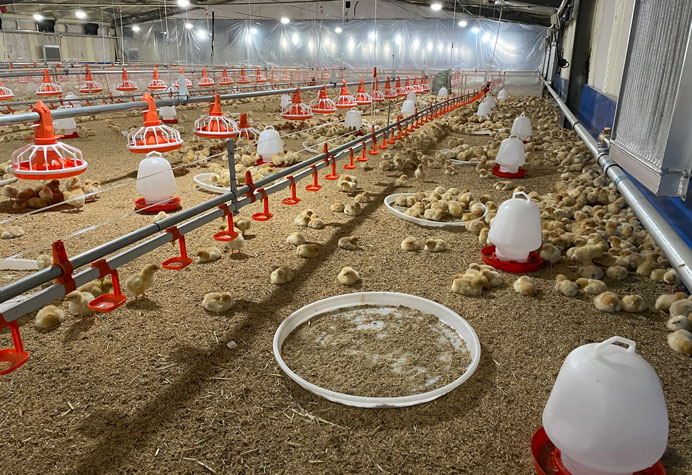

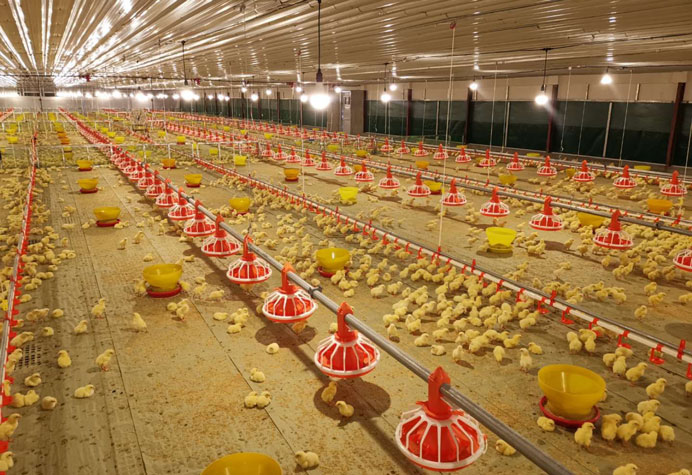

<span style="color: rgb(6, 10, 38); font-family: " pingfang="" sc",="" "helvetica="" neue",="" system-ui,="" -apple-system,="" blinkmacsystemfont,="" "segoe="" ui",="" roboto,="" "noto="" sans",="" ubuntu,="" cantarell,="" stheiti,="" "microsoft="" yahei",="" simsun,="" tahoma,="" "apple="" color="" emoji",="" ui="" symbol",="" sans-serif;="" white-space:="" normal;="" background-color:="" rgb(255,="" 255,="" 255);"="">As a conventional farming method, raising broilers on the floor is typically a comprehensive consideration based on cost control, meat quality, animal welfare, and disease prevention and control. Compared with highly automated stacked cage systems, floor rearing has lower specific requirements for housing structures, features simple equipment, and has relatively lower difficulty and cost for daily maintenance and repair.

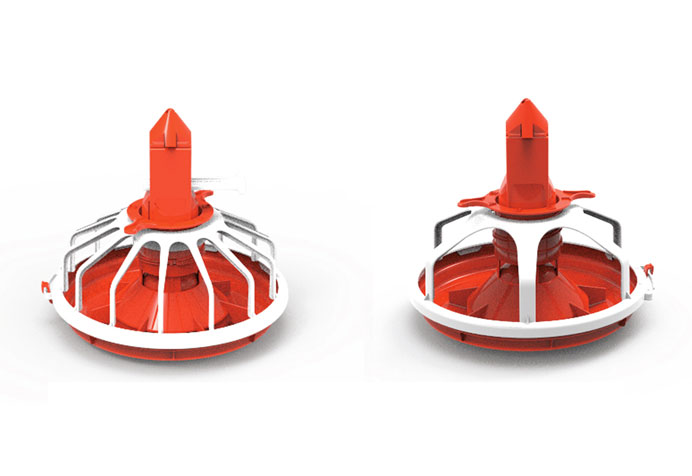

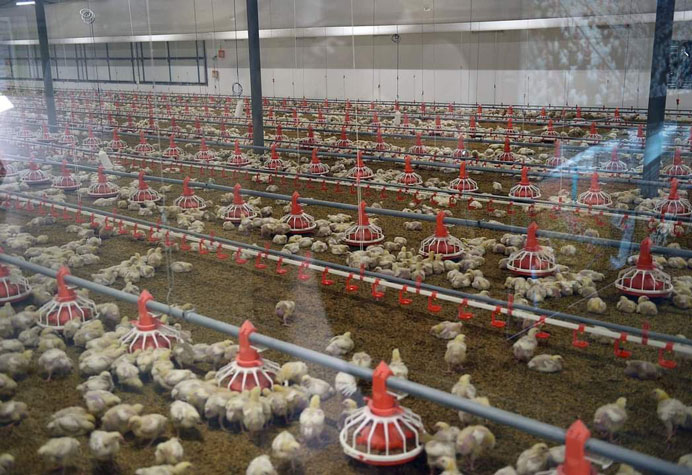

Broiler Feed Pan

Specifications: 14 or 6 feed level

Material: Polypropylene (PP)

Capacity: 40–50 birds/pan

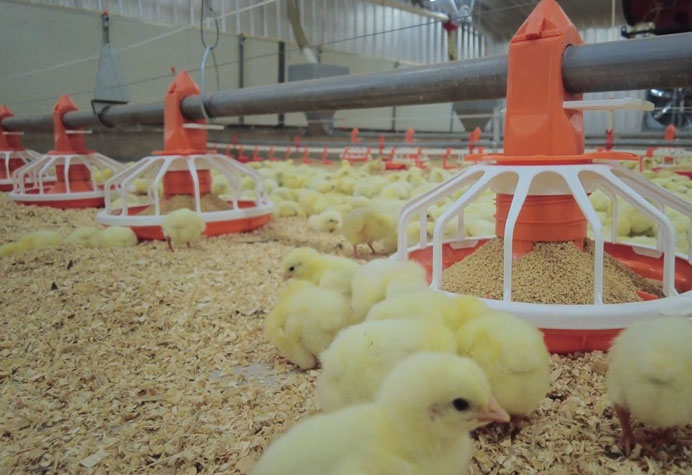

Features of the broiler feed pan:

A rotary regulator allows simple and convenient adjustment of feed flow across seven settings, ensuring balanced feed delivery without sudden changes in feed level, offering greater stability and reliability.

An adjustable control flap enables regulation of feed flow rate or complete shut-off of the feeder pan.

Seven wing plates at the bottom of the feed hopper prevent lateral flinging and spillage of feed when chickens peck, significantly reducing feed waste.

A shallow, gently sloped flat pan bottom ensures smooth feed flow and even feed distribution.

Four drainage holes in the pan base allow residual water to drain easily during cleaning.

The pan base and grating are secured together with a simple snap-fit connection, providing a firm attachment while facilitating easy maintenance and rinsing.

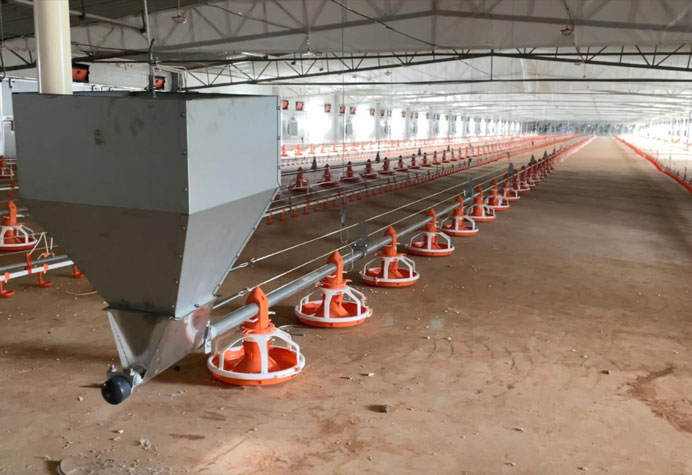

Feed Bins and Hoppers: Capacity customizable from 100L to 300L, made of galvanized steel.

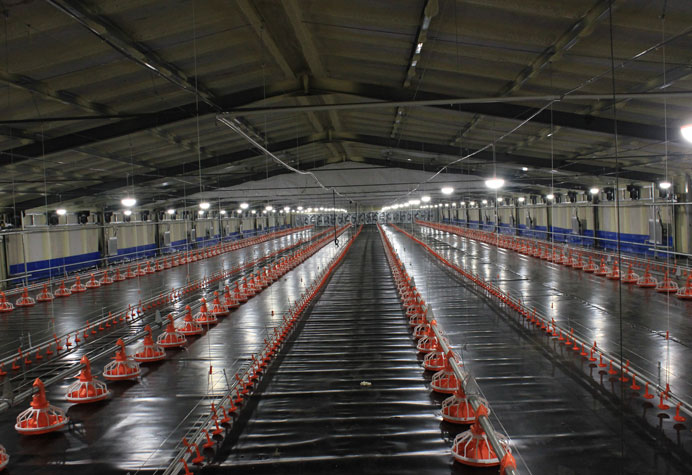

Feeding System: Φ45 galvanized pipes, available in 3-meter lengths with either 3 or 4 holes; auger imported from South Africa.

Drive System: 0.75 kW motor.

Split-type Gear Motor: Imported DOL product, offering stable performance and high sensitivity.

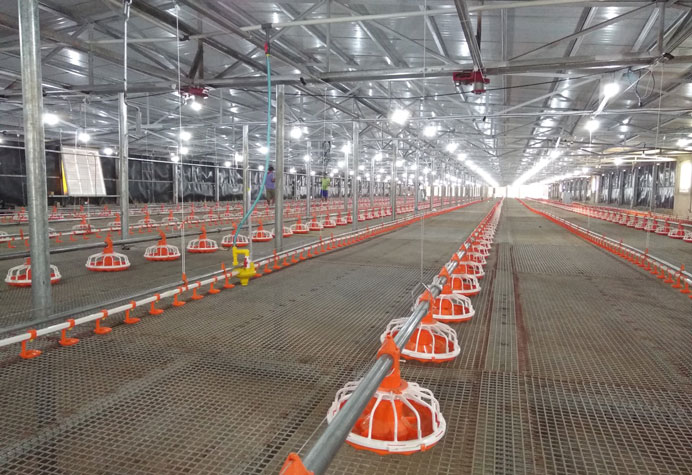

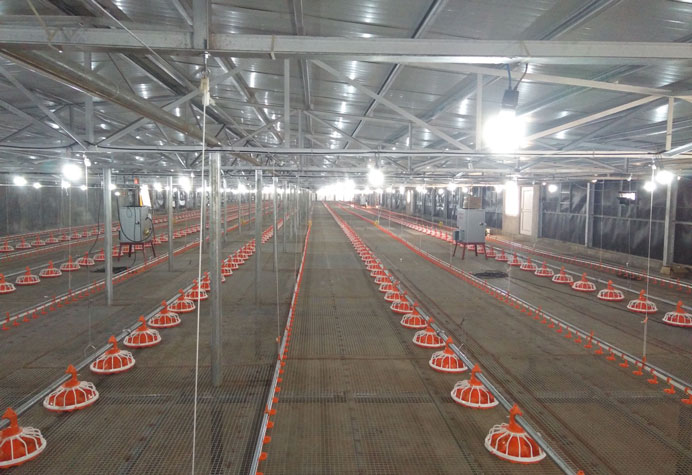

Lifting System: Includes winch, pulleys, steel wire rope, wire rope clips, and mounting hardware.

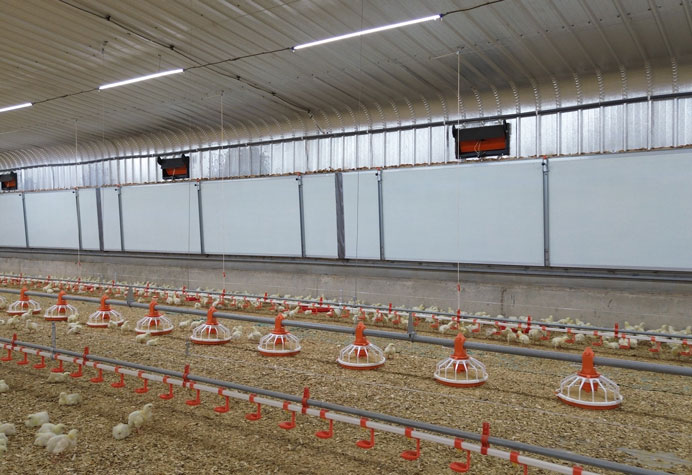

The winch-based lifting system allows prompt adjustment of the feed line height to meet the varying feeding-height requirements of chickens at different ages.
