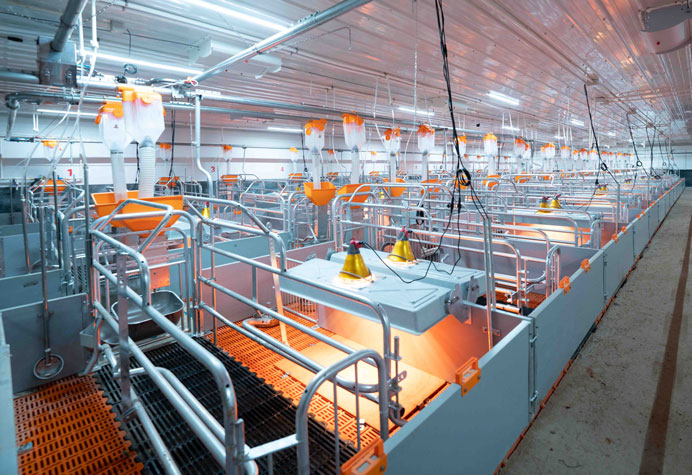

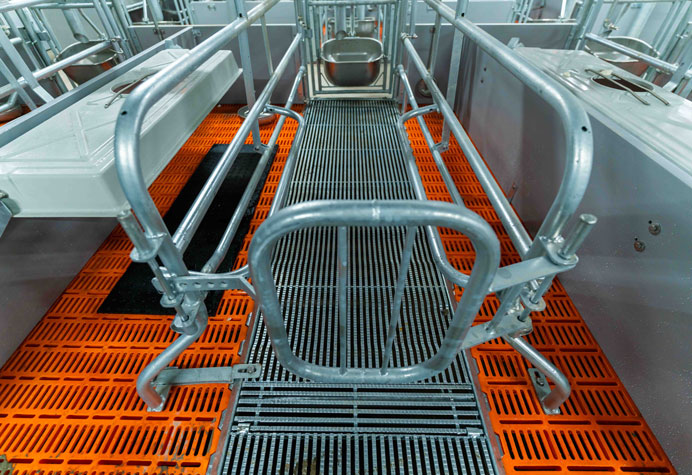

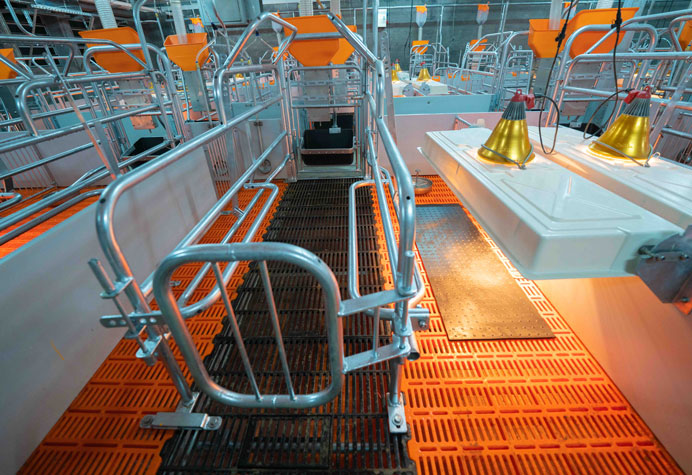

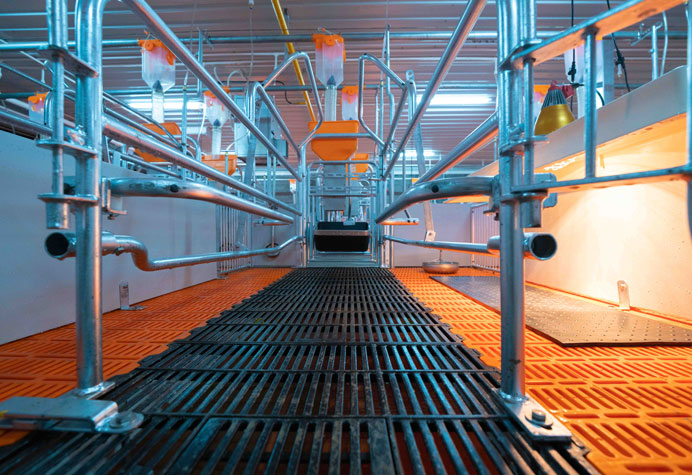

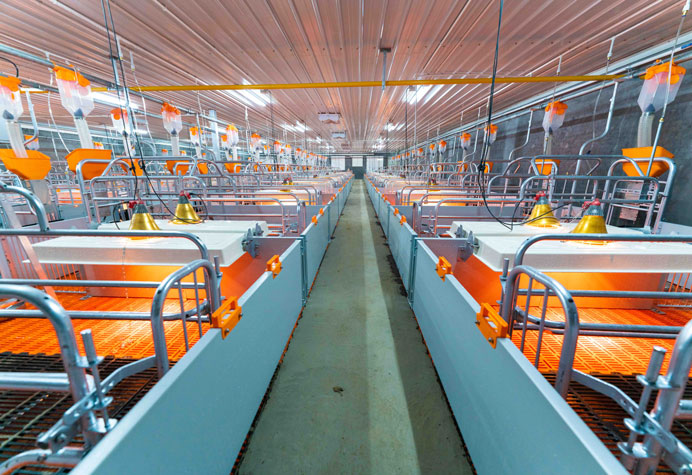

Farrowing pen

Pen Structure: Offers various standard configurations.

Adjustable Dimensions: The crate width and length can be adjusted based on the sow's size and parity to prevent crushing of piglets.

Anti-Crushing Bar: Features flexible up-and-down movement to ensure the highest level of piglet safety.

Feeding Restriction Bar: Equipped with an elevating curved iron pipe on the outer side of the farrowing crate. The height is adjustable to ensure unobstructed nursing for piglets.

Isolation Rake: Features reasonable spacing to guarantee nursing for piglets.

Piglet Barrier: Leaves a free passage at the rear of the farrowing crate to prevent the sow from crushing piglets, facilitating piglet movement and enhancing their physical fitness.

Thermal Insulation System: Dedicated warming area prevents chilling and provides a comfortable space for piglets.

Piglet Plastic Flooring: Single rib load capacity ≥ 200 KG.

Sow Cast Iron Flooring: Single rib load capacity ≥ 500 KG.

Piglet PVC Enclosure: Flame retardant rating B1.

Heat Lamp: Protection rating IP65.

Individual Sow Feeder: Features a flip-top design for easy cleaning and disinfection. Allows for independent feeding to effectively prevent cross-infection.

Galvanization: Utilizes hot-dip galvanizing process, ensuring durability, corrosion resistance, easy cleaning/disinfection, and a long service life.
